MPN: GL-ALED-2.5-IND-001
Premium indoor LED display with 2.5mm pixel pitch, 3840Hz refresh rate, and 100,000-hour lifespan—ideal for conference rooms and commercial spaces.
In Stock
Share

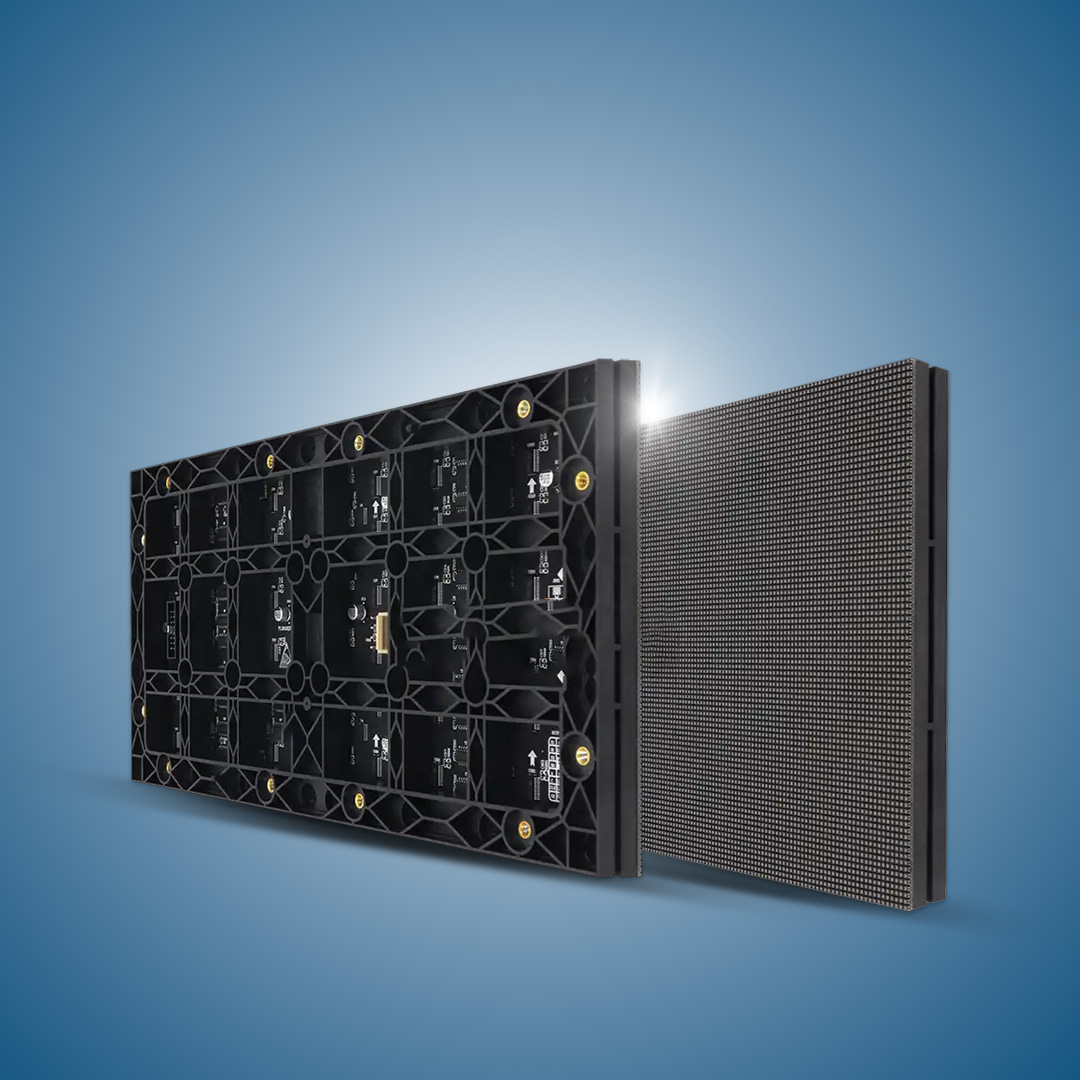

The GoLive Active LED 2.5 Indoor Display Panel is a high-performance, commercial-grade LED solution designed for professional environments such as conference halls, meeting rooms, auditoriums, and event venues.
Built with advanced SMD2020 LED technology, it delivers superior brightness, high contrast, and crystal-clear visuals even in well-lit indoor settings. With a pixel pitch of 2.5mm, the display ensures sharp image quality and seamless viewing at close distances.

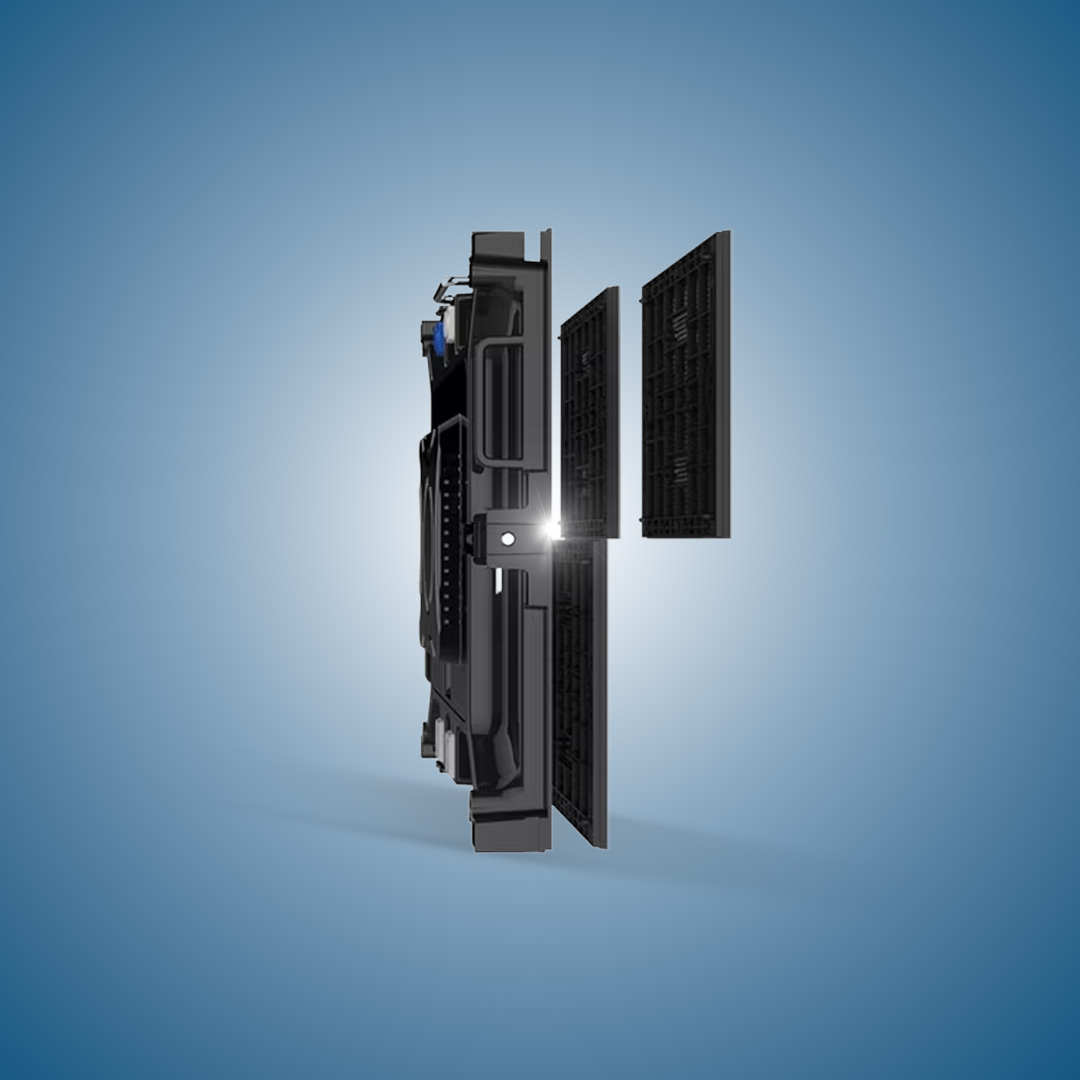

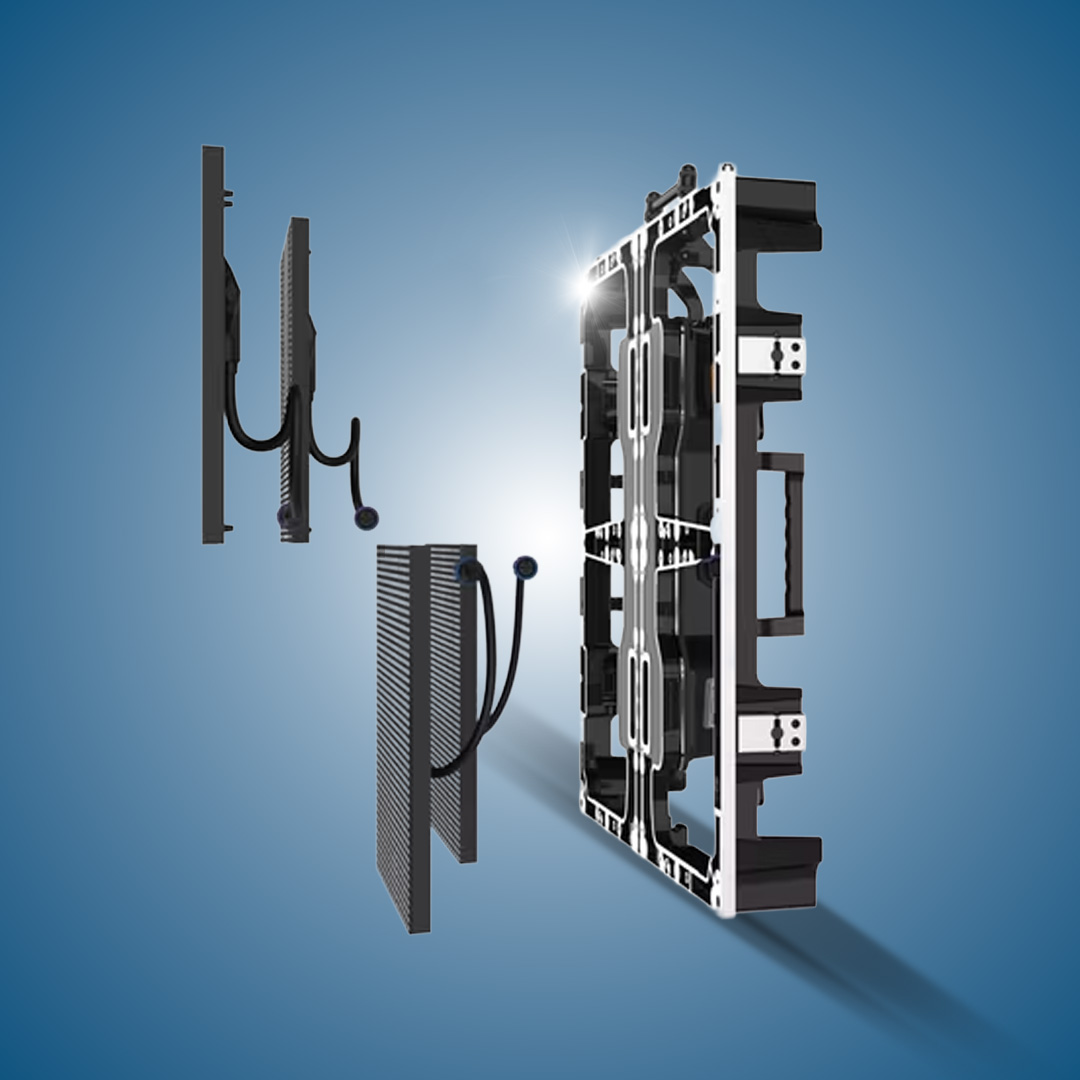

Its modular lightweight design allows for easy installation, scalability, and maintenance. The single-lamp maintenance feature significantly reduces downtime and service costs, making it a cost-effective long-term investment.
Engineered for durability, the panel supports 24/7 continuous operation with a lifespan of up to 100,000 hours, making it ideal for mission-critical applications.
| Model Number: Active LED 2.5 |
| Screen Size: Customizable (modular panels) |
| Resolution: 160,000 dots/m² |
| Panel Type: SMD2020 LED |
| Brightness: ?600 nits |
| Refresh Rate: 3840 Hz |
| Processor: N/A (display module; external controller required) |
| Motherboard: NA |
| RAM: NA |
| Storage: NA |
| Graphics Card: NA |
| Power Supply: NA |
| Cooling System: NA |
| Connectivity: Wired (HDMI / DVI / LAN via controller) |
| Touch Capability: No |
| Operating System: Compatible with external control systems (Windows/Android-based controllers) |
| AI Features: No |
| Weight: Approx. 8–12 kg per panel (varies by configuration) |
| Dimension: Approx. 500 x 500 x 80 mm per cabinet (customizable) |
| Mounting Options: Wall-mounted / Frame-mounted / Hanging structure |
| Usage Purpose: Conference rooms, corporate offices, auditoriums, event spaces |
| Warranty: 2 Years Manufacturer Warranty |
| Stock Availability: in_stock |
| Superior Visual Clarity | High pixel density ensures sharp images even at close viewing distances. |
| Energy Efficient Operation | Consumes ?130W/m², reducing electricity costs. |
| Wide Viewing Angles | Up to 150° horizontal and 130° vertical for better audience coverage. |
| Easy Installation | Lightweight modular panels enable quick setup and dismantling. |
No documents available.
No reviews yet. Be the first to write a review!
Pickup available at GoLive eTechnologies India Private Limited Indirapuram, Ghaziabad - 201014 Usually ready in 24 hours
View store informationShop Top-Rated Favorites at Unbeatable Prices!
GoLive Active LED 2.5 Indoor Display Panel
Carefully evaluate side-by-side to find the perfect match for your needs
| Price |
-14%
₹215,000.00 M.R.P: ₹250,000.00 |
-16%
₹23,500.00 M.R.P: ₹28,000.00 |
-38%
₹5,250.00 M.R.P: ₹8,500.00 |
-22%
₹15,500.00 M.R.P: ₹19,999.00 |
|---|---|---|---|---|
| Model number | Active LED 2.5 | DS-D5043F3-1V0S | DS-D5022F2-1P2 | DS-D50320E |
| Delivery | Get it PAN INDIA WITHIN 7 DAYS | Get it Pan India within 7 Days | Get it Pan India within 7 Days | Get it Pan India within 7 Days |
| Customer Ratings | 0 (0) | 0 (0) | 0 (0) | 0 (0) |
| Brand | GoLive eTechnologies | Hikvision | Hikvision | Hikvision |
| Display Size | Customizable (modular panels) | 43" | 21.45 inch | 31.5 inches |
| Resolution | 160,000 dots/m² | 1920×1080 (Full HD) | 1920 × 1080 (FHD) | 1920 × 1080 (Full HD) |
| Display Technology | SMD2020 LED | VA (Vertical Alignment) | IPS, E-LED Backlight | LED Backlit |
| Brightness | ?600 nits | 300 cd/m² | 250 cd/m² | Typical 300 cd/m² |
| Refresh rate | 3840 Hz | 60 Hz | 100Hz (Max.) | 60 Hz |
| Processor | N/A (display module; external controller required) | — | — | — |
| Motherboard | NA | — | — | — |
| Ram type capacity | NA | — | — | — |
| Storage type capacity | NA | — | — | — |
| Graphics card | NA | — | — | — |
| Power supply | NA | 100–240V AC, 50/60Hz | — | — |
| Cooling system | NA | — | — | — |
| Connectivity type | Wired (HDMI / DVI / LAN via controller) | HDMI ×1, VGA ×1, USB 2.0 ×1, Audio Line Out ×1 | HDMI 1.4 ×1, VGA ×1, Audio Out | HDMI, VGA, Audio In/Out |
| Touch capability | No | — | — | — |
| Operating system | Compatible with external control systems (Windows/Android-based controllers) | — | — | — |
| Ai features | No | — | — | Smart Engine for Phase, Image Position, and Color Calibration |
| Weight | Approx. 8–12 kg per panel (varies by configuration) | 6.85 ± 0.5 kg | Net: 2.0 ±0.5 kg | Gross: 3.2 ±0.5 kg | Approx. 6.5 kg |
| Dimension | Approx. 500 x 500 x 80 mm per cabinet (customizable) | 953 × 562 × 76 mm (without base) | Without Base: 493.26 × 290.13 × 42.35 mm With Base: 493.26 × 393.45 × 185.74 mm | With Stand: 729.7 × 430.4 × 50 mm (approx.) |
| Mounting options | Wall-mounted / Frame-mounted / Hanging structure | VESA 200×200 mm | VESA 75×75 mm Wall Mount Supported | Wall Mount Bracket Included |
| Usage purpose | Conference rooms, corporate offices, auditoriums, event spaces | Office display, classroom teaching, signage, home entertainment | Office, Education, Home, Gaming, CCTV Monitoring | Ideal for Control Rooms, Digital Signage, Surveillance Displays, and Meeting Rooms |
| Warranty | 2 Years Manufacturer Warranty | 3 Years Standard Warranty | 3 Years Manufacturer Warranty | 3 Years Manufacturer Warranty |
