MPN: GL-LED-IND-1.53-SMD-ACT
High-resolution indoor LED display with 1.53mm pixel pitch, 3840Hz refresh rate, and ?600 nits brightness—ideal for conference rooms and commercial spaces.
In Stock
Share

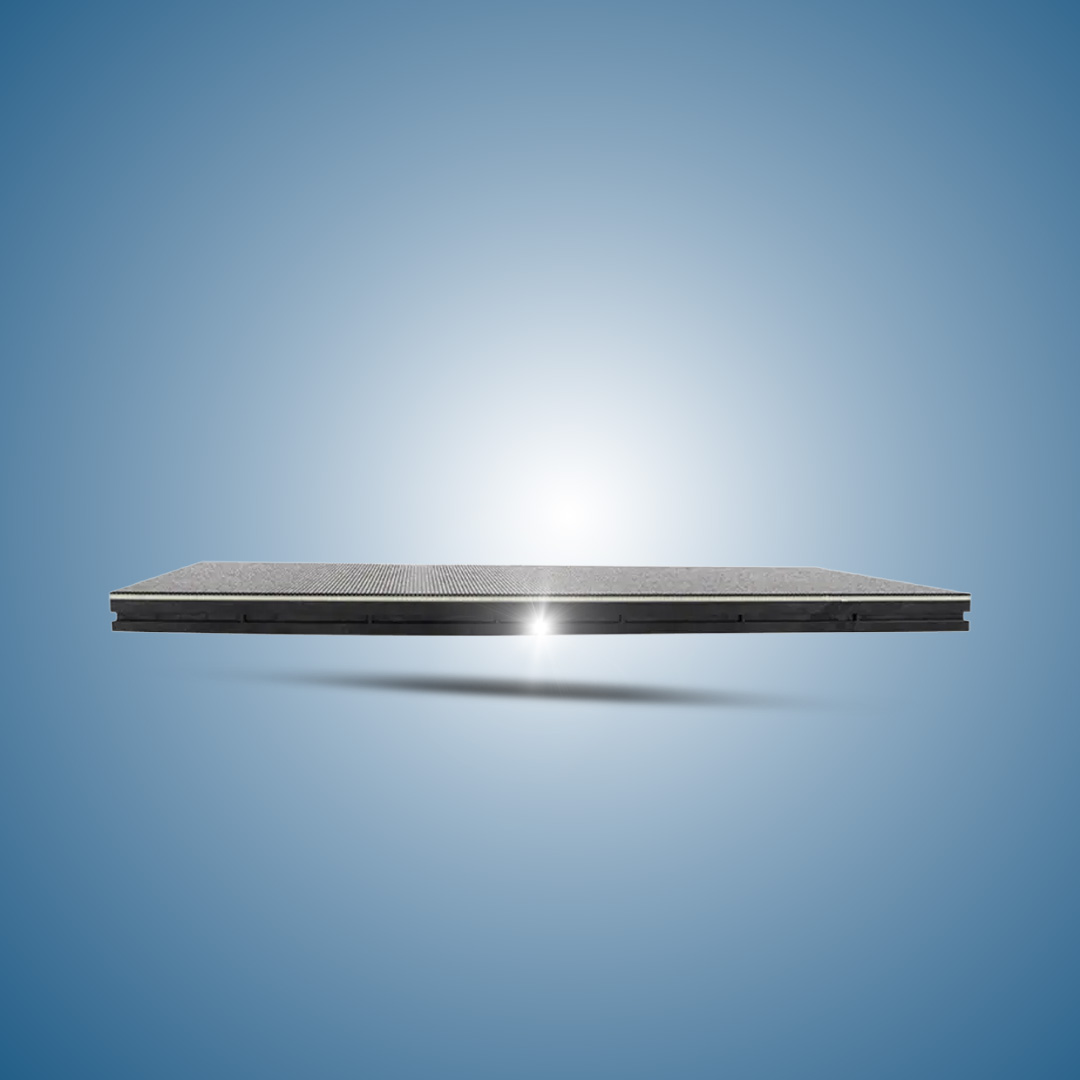

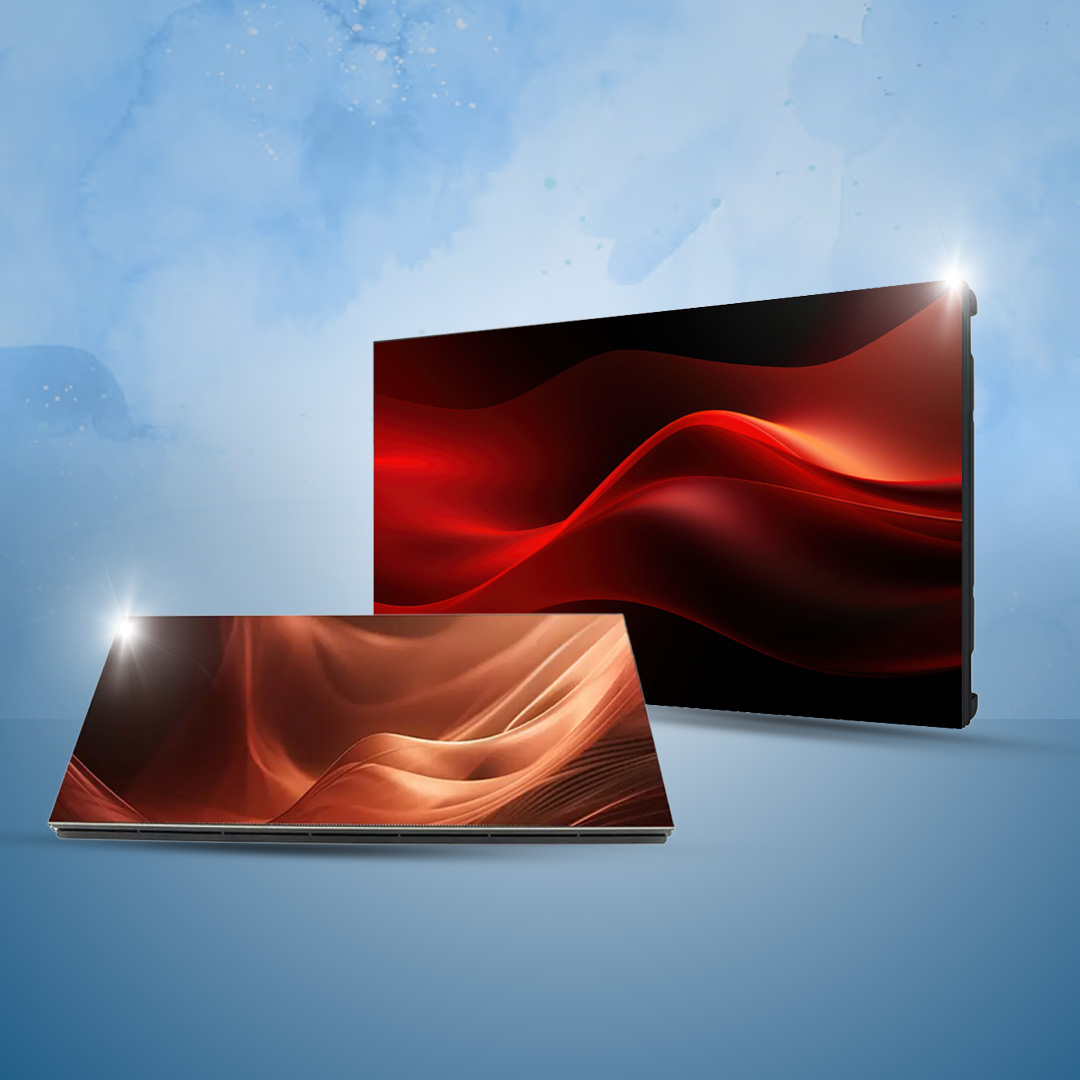

The GoLive Technologies Indoor 1.53mm SMD Active LED Display is engineered for premium indoor visual applications such as conference halls, boardrooms, control centers, and corporate environments. With an ultra-fine 1.53mm pixel pitch and a high pixel density of 423,729 dots/m², it delivers crystal-clear visuals with exceptional detail and color accuracy.
Built using SMD1212 copper wire technology, this LED display ensures superior brightness utilization and enhanced contrast, making content vibrant and easy to view even under indoor lighting conditions. With a brightness level of ?600 nits and a 3840Hz refresh rate, it guarantees flicker-free visuals and smooth motion performance—perfect for presentations, videos, and real-time data display.

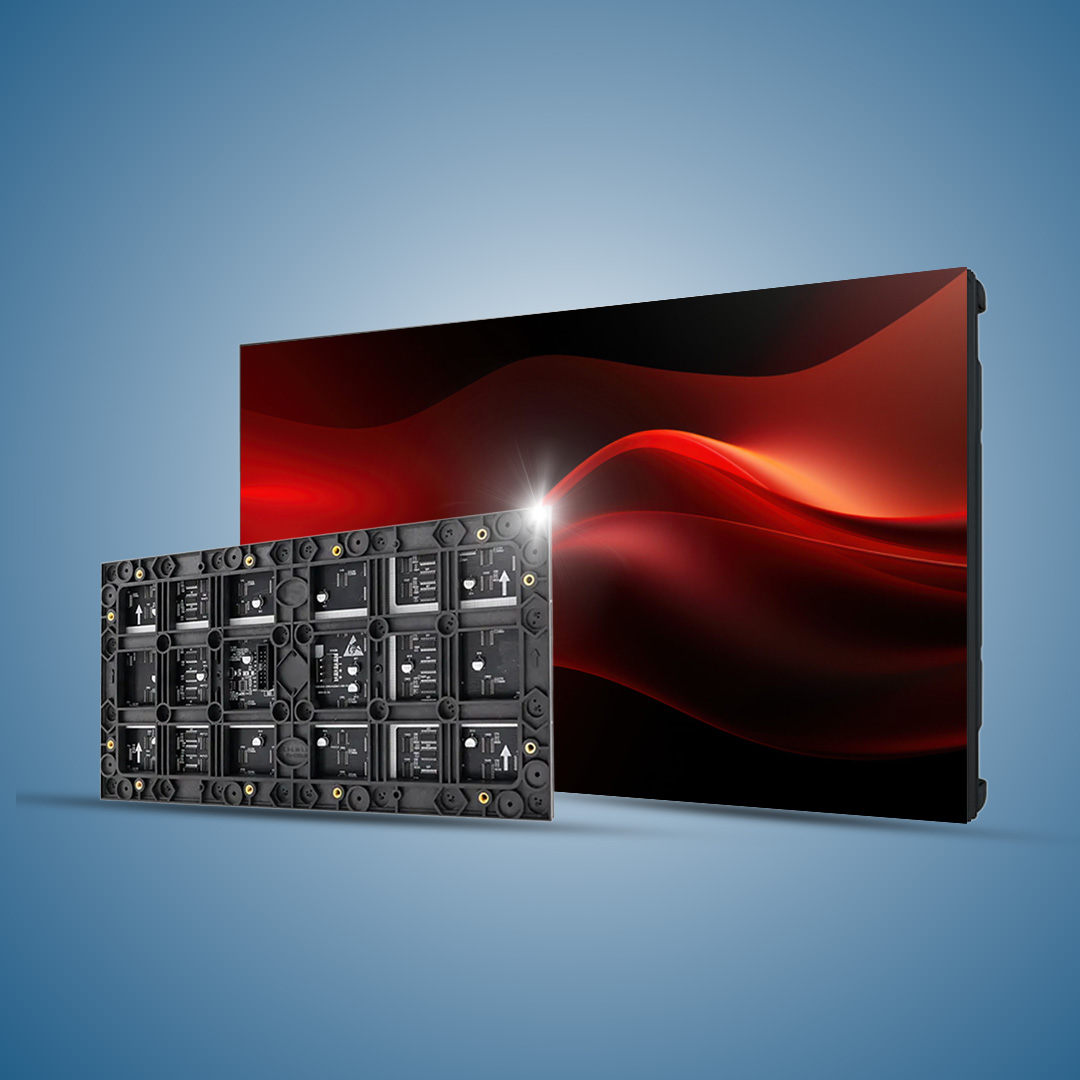

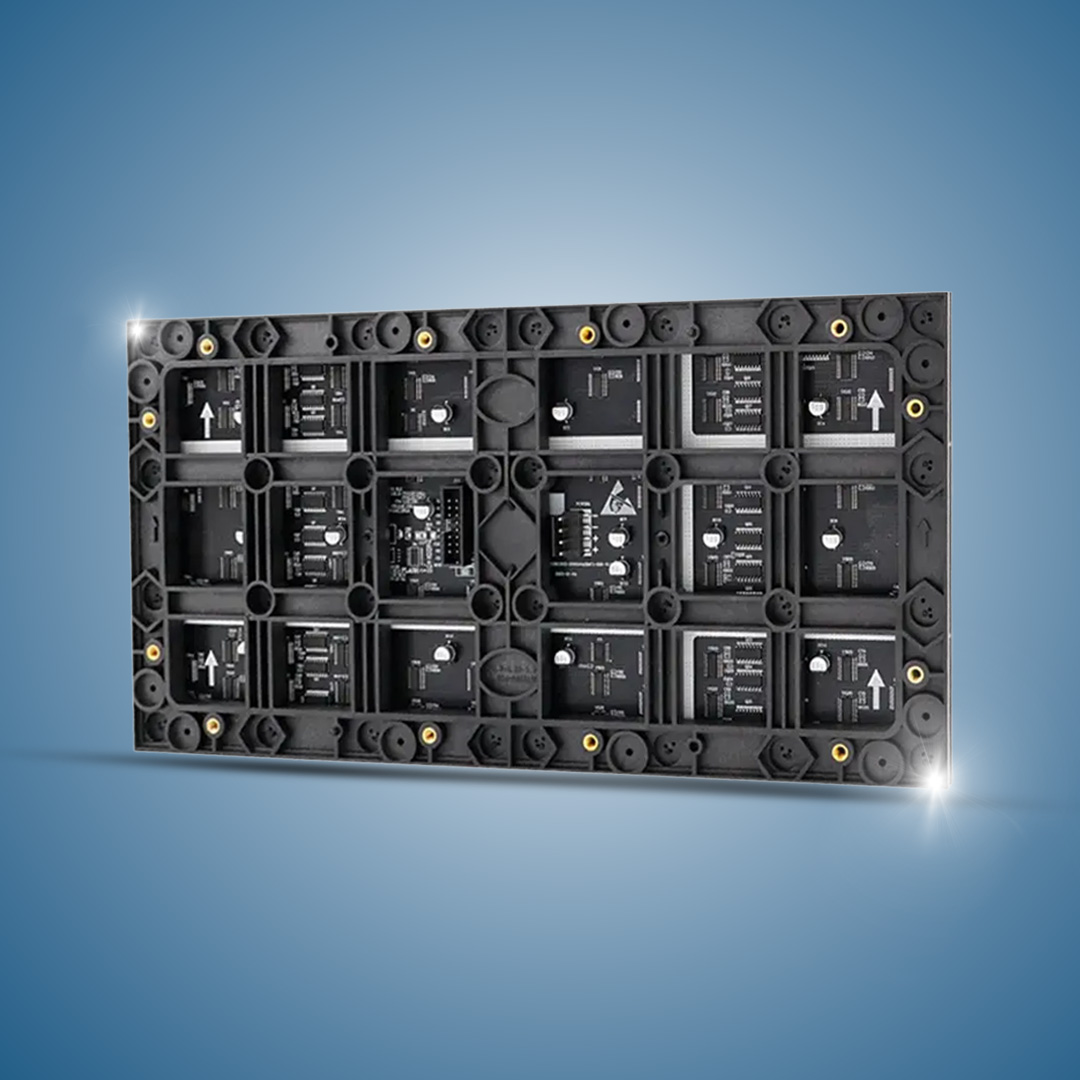

Its lightweight modular design simplifies installation, maintenance, and scalability. The support for single-lamp maintenance significantly reduces downtime and long-term operational costs.
Designed for durability and reliability, the display supports 24/7 continuous operation with a lifespan of up to 100,000 hours, making it a cost-effective and dependable solution for modern commercial environments.
| Model Number: GL-P1.53-SMD-IND-ACT |
| Screen Size: Customizable (modular panels) |
| Resolution: Ultra HD (depends on configuration; high pixel density 423,729 dots/m²) |
| Panel Type: SMD1212 LED Panel |
| Brightness: ?600 nits |
| Refresh Rate: 3840 Hz |
| Processor: External video processor compatible (NovaStar / equivalent) |
| Motherboard: NA |
| RAM: NA |
| Storage: NA |
| Graphics Card: NA |
| Power Supply: NA |
| Cooling System: NA |
| Connectivity: HDMI / DVI / DisplayPort via controller |
| Touch Capability: No |
| Operating System: N/A (works with external controller systems) |
| AI Features: No |
| Weight: 6–8 kg per panel (approx.) |
| Dimension: Typical Panel: 320 x 160 mm (customizable configuration) |
| Mounting Options: Wall-mounted / Frame-mounted / Hanging installation |
| Usage Purpose: Conference rooms, boardrooms, control centers, corporate displays |
| Warranty: 2 Years Manufacturer Warranty |
| Stock Availability: in_stock |
| 1. Superior Visual Clarity | Ultra-fine pixel pitch ensures sharp images and readable text. |
| 2. Energy Efficient Design | Low average power consumption ?130W/m² reduces operational cost. |
| 3. Wide Viewing Angles | ?150° horizontal and ?130° vertical for consistent visuals. |
| 4. Modular & Lightweight | Quick installation and easy scalability. |
| 5. Long Lifespan | Up to 100,000 hours ensures long-term reliability. |
No documents available.
No reviews yet. Be the first to write a review!
Pickup available at GoLive eTechnologies India Private Limited Indirapuram, Ghaziabad - 201014 Usually ready in 24 hours
View store informationShop Top-Rated Favorites at Unbeatable Prices!
GoLive Indoor 1.53mm SMD Active LED Display Panel
Carefully evaluate side-by-side to find the perfect match for your needs
| Price |
-11%
₹165,000.00 M.R.P: ₹185,000.00 |
-16%
₹23,500.00 M.R.P: ₹28,000.00 |
-38%
₹5,250.00 M.R.P: ₹8,500.00 |
-22%
₹15,500.00 M.R.P: ₹19,999.00 |
|---|---|---|---|---|
| Model number | GL-P1.53-SMD-IND-ACT | DS-D5043F3-1V0S | DS-D5022F2-1P2 | DS-D50320E |
| Delivery | Get it PAN INDIA WITHIN 7 DAYS | Get it Pan India within 7 Days | Get it Pan India within 7 Days | Get it Pan India within 7 Days |
| Customer Ratings | 0 (0) | 0 (0) | 0 (0) | 0 (0) |
| Brand | GoLive eTechnologies | Hikvision | Hikvision | Hikvision |
| Display Size | Customizable (modular panels) | 43" | 21.45 inch | 31.5 inches |
| Resolution | Ultra HD (depends on configuration; high pixel density 423,729 dots/m²) | 1920×1080 (Full HD) | 1920 × 1080 (FHD) | 1920 × 1080 (Full HD) |
| Display Technology | SMD1212 LED Panel | VA (Vertical Alignment) | IPS, E-LED Backlight | LED Backlit |
| Brightness | ?600 nits | 300 cd/m² | 250 cd/m² | Typical 300 cd/m² |
| Refresh rate | 3840 Hz | 60 Hz | 100Hz (Max.) | 60 Hz |
| Processor | External video processor compatible (NovaStar / equivalent) | — | — | — |
| Motherboard | NA | — | — | — |
| Ram type capacity | NA | — | — | — |
| Storage type capacity | NA | — | — | — |
| Graphics card | NA | — | — | — |
| Power supply | NA | 100–240V AC, 50/60Hz | — | — |
| Cooling system | NA | — | — | — |
| Connectivity type | HDMI / DVI / DisplayPort via controller | HDMI ×1, VGA ×1, USB 2.0 ×1, Audio Line Out ×1 | HDMI 1.4 ×1, VGA ×1, Audio Out | HDMI, VGA, Audio In/Out |
| Touch capability | No | — | — | — |
| Operating system | N/A (works with external controller systems) | — | — | — |
| Ai features | No | — | — | Smart Engine for Phase, Image Position, and Color Calibration |
| Weight | 6–8 kg per panel (approx.) | 6.85 ± 0.5 kg | Net: 2.0 ±0.5 kg | Gross: 3.2 ±0.5 kg | Approx. 6.5 kg |
| Dimension | Typical Panel: 320 x 160 mm (customizable configuration) | 953 × 562 × 76 mm (without base) | Without Base: 493.26 × 290.13 × 42.35 mm With Base: 493.26 × 393.45 × 185.74 mm | With Stand: 729.7 × 430.4 × 50 mm (approx.) |
| Mounting options | Wall-mounted / Frame-mounted / Hanging installation | VESA 200×200 mm | VESA 75×75 mm Wall Mount Supported | Wall Mount Bracket Included |
| Usage purpose | Conference rooms, boardrooms, control centers, corporate displays | Office display, classroom teaching, signage, home entertainment | Office, Education, Home, Gaming, CCTV Monitoring | Ideal for Control Rooms, Digital Signage, Surveillance Displays, and Meeting Rooms |
| Warranty | 2 Years Manufacturer Warranty | 3 Years Standard Warranty | 3 Years Manufacturer Warranty | 3 Years Manufacturer Warranty |
